Cross Style Stethoscope
Cross Bar Style – Assembly & Installation Guide
Thank you for purchasing the Littmann Stethoscope AirTag Holder (Cross Bar Style). This holder is designed to securely mount an Apple AirTag or similar tracker to the cross bar of your stethoscope, helping you easily locate your equipment if it is misplaced.
Follow the steps below for proper assembly and installation.
Step 1 – Install the Back Piece

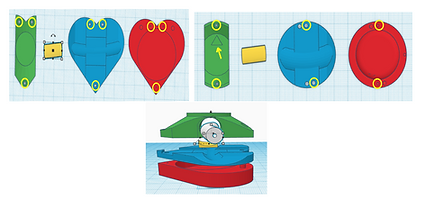

Place the back piece (green in the diagram) over the cross bar tube of the stethoscope.
-
The arrow on the round design should point upward toward the ear tips of the stethoscope.
-
The piece is designed to fit snugly and may need to be gently flexed slightly to fit over the tubing.
-
Once in place, ensure the back piece is centered on the cross bar.
Step 2 – Install the Middle Piece
Take the middle piece (blue in the diagram) and position it over the cross bar tubing.
-
Align the curved channel of the middle piece so it fits properly over the tubing.
-
Ensure it lines up with the back piece already installed on the stethoscope.
Step 3 – Insert the AirTag
Place your Apple AirTag (or compatible tracker) into the top piece (red in the diagram).
Make sure the AirTag sits securely in the circular holder area before attaching it to the rest of the assembly.
Step 4 – Assemble the Holder
Place the top piece over the middle and back pieces.
-
Use the two alignment posts on the top piece and match them with the corresponding holes in the middle piece.
-
Once aligned, insert the screws through the provided screw holes.
Step 5 – Tighten the Screws
Using a Phillips (+) screwdriver, tighten the screws until the holder is secure.
Do not overtighten, as excessive force may damage the 3D-printed components.
Support
If you have any questions or experience any issues during installation, please contact us and we will be happy to assist.
